Product Featurer

 Construction & Materials

• 304 stainless steel bowl, 0.8mm thick
• Pressed seamless polished stainless steel bowl with anti-drip lip
• Cabinet constructed from 0.6mm powder-coated galvanised steel, water and corrosion resistant
•  Bowl & Drainage Performance (560mm Model)

Bowl capacity to overflow: 23.3 ℓ

• Overflow discharge capacity: > 30 ℓ/min
• Bowl waste discharge capacity (without strainer plug): 35 ℓ/min
• Washing machine bypass waste discharge capacity: 35 ℓ/min
• 90° stainless steel basket strainer waste

Cabinet & Usability

• Cabinet models also available in a 360mm wide option
• Door can be installed left or right-hand opening
• Child-resistant catch for added safety
• Height adjustable feet (approx. 15mm adjustment)
• Turning range can be restricted within the unit

Tapware & Connections

• Integrated tapware including:
• Single lever mixer
• Concealed washing machine taps
• Easy-to-operate single lever handle
• Cut-outs on both sides for washing machine connections
• Standard tap height: approx. 350mm

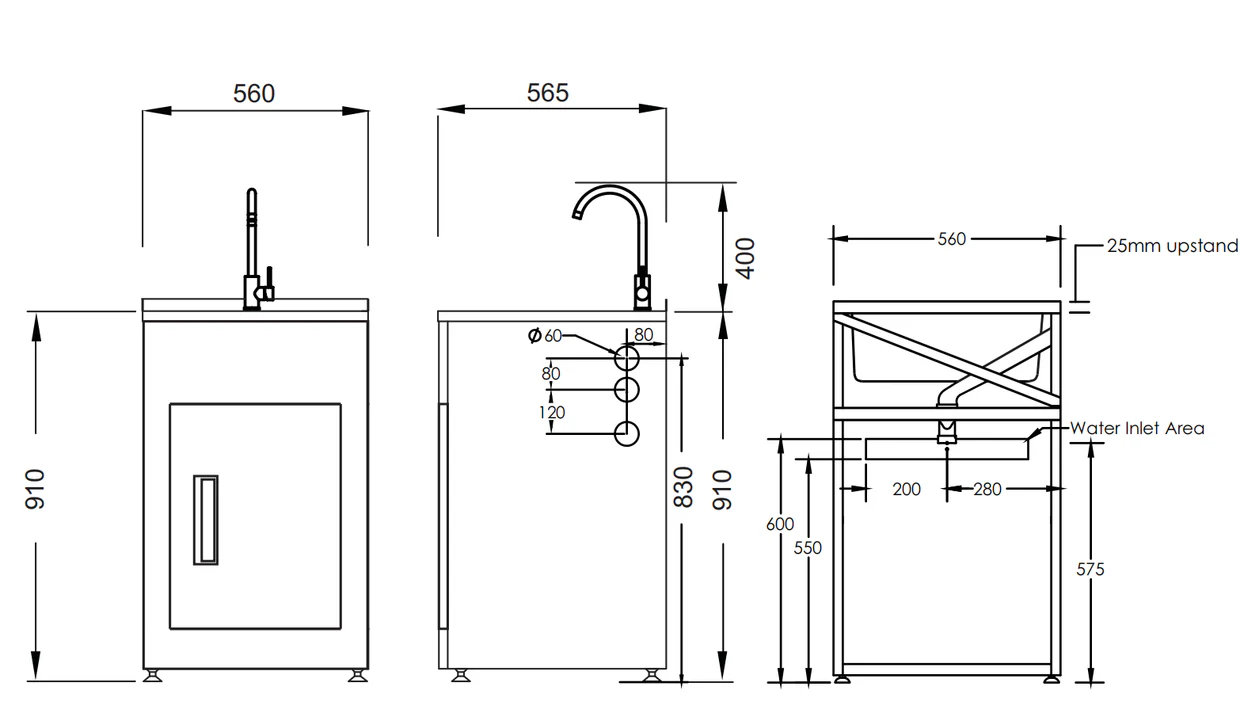

 Installation Details

• Waste outlet height: approx. 590–605mm from floor
  (depending on height adjustment via feet)
• Water Inlet Location – Installation Guidelines
• Allowed installation area:
• Maximum height from floor: 600mm
• Minimum height from floor: 550mm
• Recommended height: 575mm
• Maximum width from centre line: ±120mm

Note:
Water inlets may be positioned anywhere within this area, provided they do not interfere with the trap or waste line.

Warranty

• 5-year warranty on stainless steel bowl (manufacturing defects)
• 3-year warranty on single lever mixer and laundry cabinet
