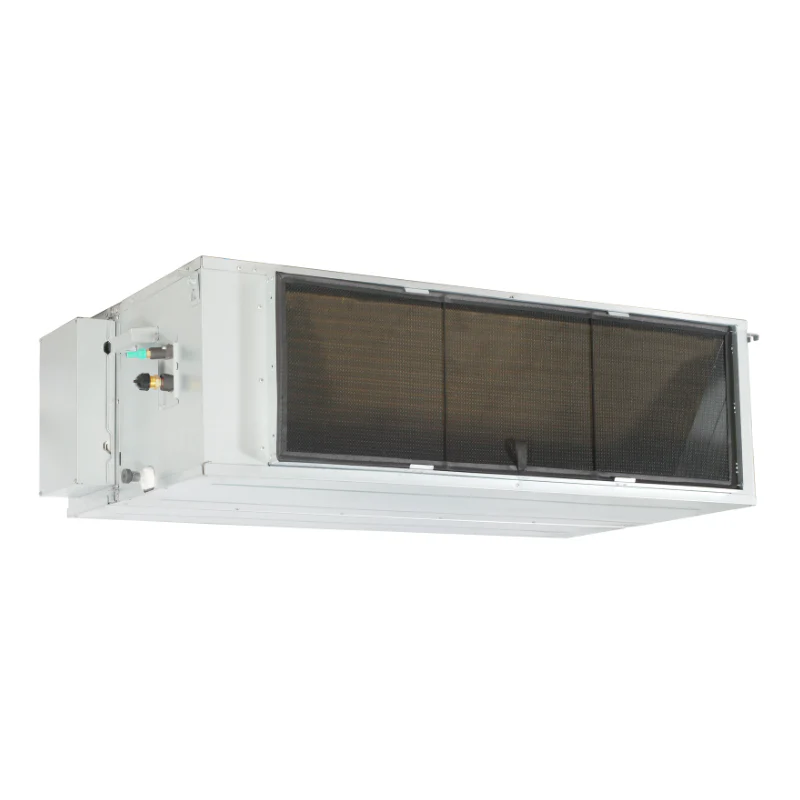

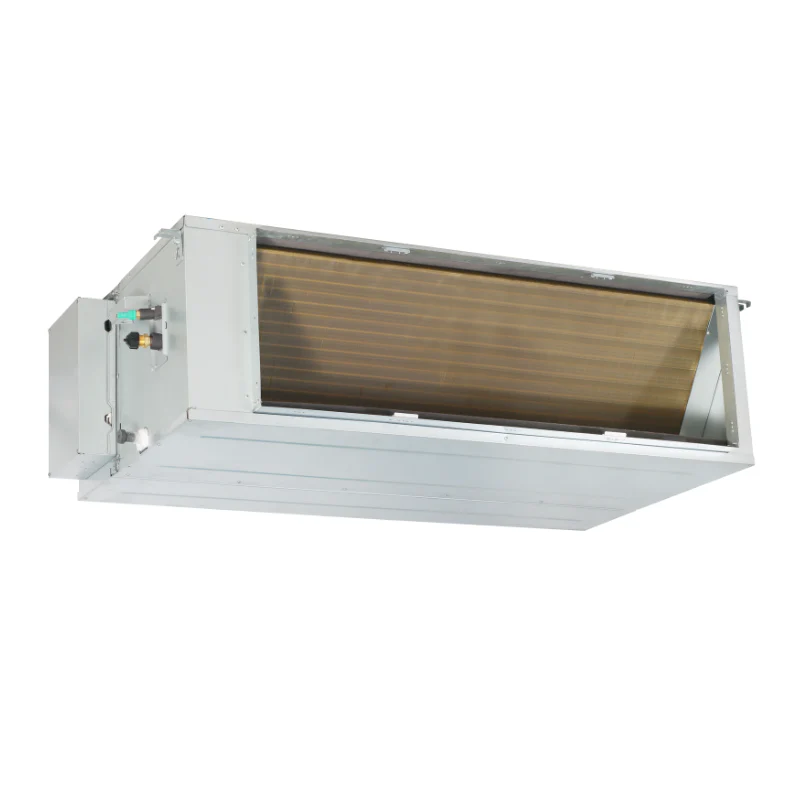

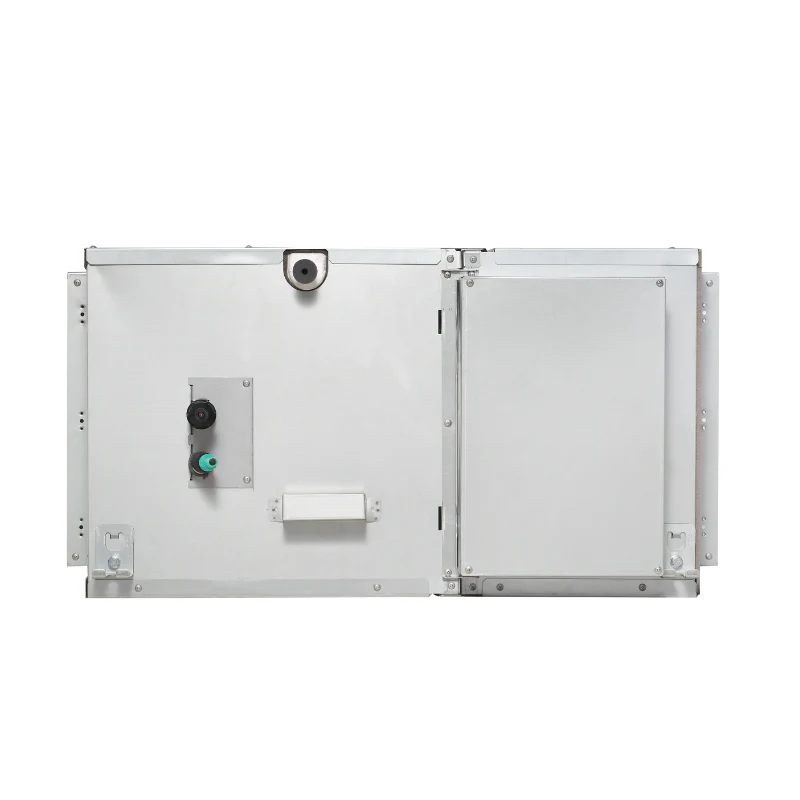

Indoor Unit Details

SKU: DUCMI170IHB
Type: HSP Ducted Heat Pump

Capacity: 17.0 kW Cooling / 17.5 kW Heating
Rated Power Input: 7.0 kW
Power Supply: 220–240V / 50Hz / 1 Ph
Indoor Airflow (Hi/Mid/Low): 3800 / 3000 / 2285 m³/h
Dimensions (WxDxH): 1400 × 858 × 440 mm
Packing Dimensions (WxDxH): 1605 × 910 × 515 mm
Net/Gross Weight: 81.1 / 91.6 kg
Sound Power Level: 66 dB(A)

---

Outdoor Unit Details

Airflow: 7600 m³/h
Dimensions (WxDxH): 952 × 415 × 1333 mm
Packing Dimensions (WxDxH): 1095 × 495 × 1480 mm
Net/Gross Weight: 95.8 / 110 kg
Sound Power Level: 72.0 dB(A)

✅ 5-Year Warranty

Ducted Heat Pump Specification Brochure

Installation Manual Book
