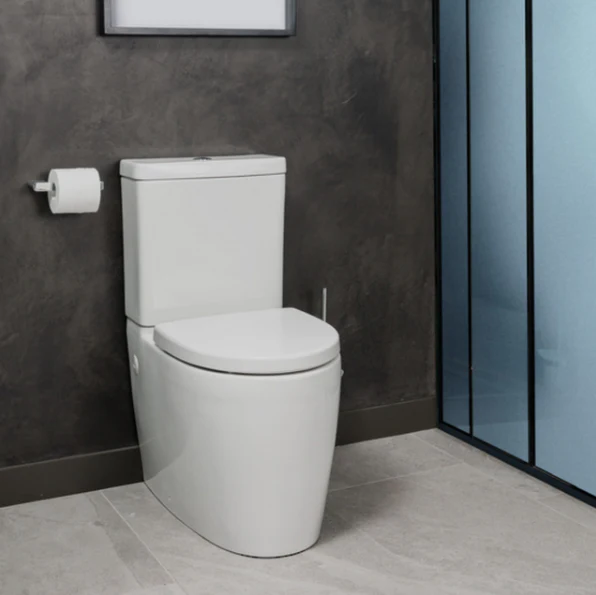

KOHLER Grande Back to Wall Toilet Suite

Hygiene and Easy Cleaning
Introducing the KOHLER Grande with rimless technology for maximum hygiene and effortless day-to-day care. The ultra-efficient flush system and smooth, rim-free interior pan design allow for easy cleaning and ensure every corner is accessible.

Features

• Hygiene Max Rimless Technology: Ensures maximum cleanliness and easy maintenance
• Dual Flush: 4.5L full flush / 3L half flush for water efficiency
• Seat Options: Choose from standard, slim, or elite seat options
  • The Elite Seat includes a built-in night light and scent dispenser for added convenience
  • Option to add an Englefield Bidet Seat (see pricing for details)
• Water Inlet Options: Top left rear entry or left/right pan side entry
• S-Trap Set Out Options:
  • Option 1: 110 – 140mm (with Vario 12503A-NA pan connector)
  • Option 2: 90 – 160mm (with Vario 12503A-NA + 20mm offset pan collar 100794)
  • Option 3: 170 – 290mm (with Vario 77837A-NA long adjustable pan connector)
• P-Trap Set Out Height: 185mm

Materials

• Made from durable vitreous china for long-lasting quality

Included Components

• Grande Toilet Pan
• Grande Cistern (4.5L/3L)
• Grande Quick Close, VQR (Vertical Quick Release) Toilet Seat
• Vario Pan Connector
• Offset Pan Collar (20mm)
• Fill Valves for both top left rear entry and pan side entry
• Top Left Rear Entry Water Supply Hose
• 2 Caps for Pan Side Entry Holes
• Hose Ring for Pan Side Entry Hole
• Floor Fixing Kit
